2025 Estructura de acero de calibre ligero prefabricada de bajo costo australiana Marco de hotel por casas Lgs prefabricadas Villa pop modular
Precio habitual
€7.642,00 EUR
Precio habitual
Precio de oferta
€7.642,00 EUR
Precio unitario
por
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Hign-concerned Chemical: None
Condition: New
Warranty: 2 years
After-sale Service: Online technical support
Application: Apartment, Workers Camp
Place of Origin: HENAN, China
Brand Name: YUGONG
Material: Sandwich Panel, Steel
Use: House
Product Type: Detachable Container
Design Style: Modern
Size: 20FT/40FT Customized

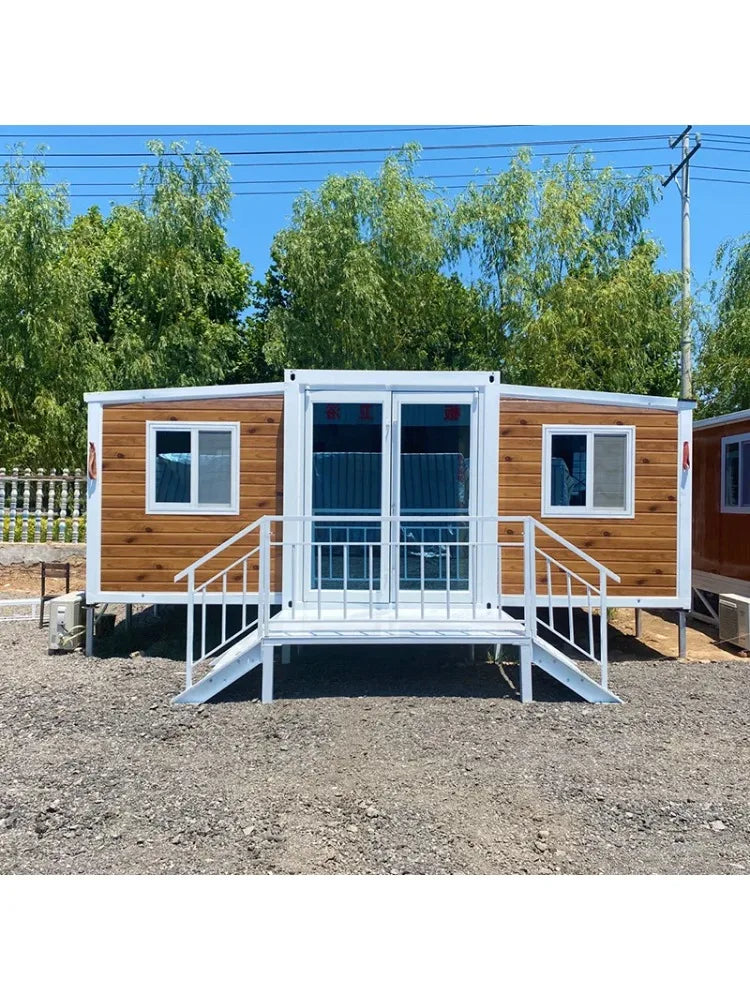

Product name: Expandable Container House
Wall: Rock Glass Wool Sandwich Panel
Type: Steel Structure Frame
Advantage: Fast Install
OUTSIDE DIMENSION: 6055mm*2438mm*2896mm
ROOF TILE: 0.5mm color steel plate (butyl sealant)
MAIN ROOF BEAM: The section size is 160mm, the thickness is 3.0mm
FRAMNE PILLAR: L-section steel column 160mm*160mm*3.0mm
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:357px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:357px}#detail_decorate_root .magic-3{width:446px}#detail_decorate_root .magic-4{overflow:hidden;width:446px;height:208.13333333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:-38.05866666666667px;margin-left:-16.650666666666666px;width:467px;height:279px}#detail_decorate_root .magic-6{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-7{font-family:Arial;font-size:26px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:429.6875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:429.6875px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:421.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:421.875px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:468.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:468.75px}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:262px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:262px}#detail_decorate_root .magic-19{vertical-align:top}#detail_decorate_root .magic-20{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-21{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-22{width:371px;height:371px;overflow:hidden}#detail_decorate_root .magic-23{position:relative;left:0;top:0;width:371px;height:371px}#detail_decorate_root .magic-24{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-25{font-size:22px}#detail_decorate_root .magic-26{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-27{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-28{font-size:16px}#detail_decorate_root .magic-29{background-color:#ffc36d}#detail_decorate_root .magic-30{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-31{text-align:center}#detail_decorate_root .magic-32{font-size:26px;background-color:#cafbf1}#detail_decorate_root .magic-33{width:750px;border-collapse:collapse}#detail_decorate_root .magic-34{min-height:18px;padding:5px 10px;width:151px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-35{font-size:24px;font-family:Arial;background-color:#97ecb9}#detail_decorate_root .magic-36{background-color:#f0f8ff}#detail_decorate_root .magic-37{min-height:18px;padding:5px 10px;width:162px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-38{font-size:16px;background-color:#f0f8ff}#detail_decorate_root .magic-39{min-height:18px;padding:5px 10px;width:370px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-40{text-align:left}#detail_decorate_root .magic-41{background-color:#f0f8ff;font-size:16px}#detail_decorate_root .magic-42{display:none}#detail_decorate_root .magic-43{min-height:18px;padding:5px 10px;width:153px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:18px;padding:5px 10px;width:150px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-45{font-size:22px;background-color:#f0f8ff}#detail_decorate_root .magic-46{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-47{font-size:22px;background-color:#f0f8ff;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-48{font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;background-color:#f0f8ff}#detail_decorate_root .magic-49{min-height:18px;padding:5px 10px;width:369px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:18px;padding:5px 10px;width:161px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:18px;padding:5px 10px;width:371px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-52{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-53{overflow:hidden;width:750px;height:416px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-54{margin-top:0;margin-left:0;width:750px;height:416px}#detail_decorate_root .magic-55{overflow:hidden;width:750px;height:632px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-56{margin-top:0;margin-left:0;width:750px;height:632px}#detail_decorate_root .magic-57{overflow:hidden;width:750px;height:240px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;width:750px;height:240px}#detail_decorate_root .magic-59{overflow:hidden;width:247.33333333333334px;height:250.72861668426611px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-60{margin-top:0;margin-left:0;width:247px;height:250px}#detail_decorate_root .magic-61{overflow:hidden;width:247.33333333333334px;height:250.33738191632932px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:250px;height:250px}#detail_decorate_root .magic-63{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-65{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-66{overflow:hidden;width:750px;height:350px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-67{margin-top:0;margin-left:0;width:750px;height:350px}#detail_decorate_root .magic-68{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-69{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-70{overflow:hidden;width:750px;height:200px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-71{margin-top:0;margin-left:0;width:750px;height:200px}#detail_decorate_root .magic-72{overflow:hidden;width:750px;height:1169px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-73{margin-top:0;margin-left:0;width:750px;height:1169px}#detail_decorate_root .magic-74{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-75{overflow:hidden;width:750px;height:852.7941176470589px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-76{margin-top:0;margin-left:0;width:750px;height:852.7941176470589px}#detail_decorate_root .magic-77{overflow:hidden;width:750px;height:203px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-78{margin-top:0;margin-left:0;width:750px;height:203px}#detail_decorate_root .magic-79{overflow:hidden;width:446px;height:243px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-80{margin-top:0;margin-left:0;width:375px;height:249.9264705882353px}#detail_decorate_root .magic-81{background-color:#fff;font-size:24px}#detail_decorate_root .magic-82{font-size:24px;background-color:#ffc36d}#detail_decorate_root .magic-83{font-size:24px;background-color:#fff}#detail_decorate_root .magic-84{font-size:20px}#detail_decorate_root .magic-85{font-family:Arial;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-86{font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;font-family:Arial}#detail_decorate_root .magic-87{font-size:26px}#detail_decorate_root .magic-88{margin-top:0;margin-left:0;width:375px;height:274.63235294117646px}#detail_decorate_root .magic-89{font-size:26px;background-color:#ffc36d}#detail_decorate_root .magic-90{margin-top:0;margin-left:0;width:375px;height:253.23529411764707px}#detail_decorate_root .magic-91{overflow:hidden;width:750px;height:130px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-92{margin-top:0;margin-left:0;width:750px;height:130px}#detail_decorate_root .magic-93{font-family:Arial}#detail_decorate_root .magic-94{overflow:hidden;width:750px;height:195.375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-95{margin-top:0;margin-left:0;width:750px;height:195.375px}#detail_decorate_root .magic-96{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-97{font-size:28px}#detail_decorate_root .magic-98{font-size:24px}
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
My Whatsapp:+86 183 3717 5537
MY Email:sales18yugong@yg797.com
Why choose a mobile house
Quickest, lightest and most efficient way of building housing
One crucial benefit is more efficient construction. Onsite production often gets delayed by bad weather, material shortages,planning issues and even material theft. Whereas modular construction is a highly organised and streamlined process that can see construction project times reduced by up to 50% as models are ready before they leave the factory. When materials are deliveredonsite, construction workers can immediately build with 100% completed parts.
Increased use of modern technologies
Another reason for the increased popularity of modular construction is the improvement in technology. Expertise in BIM, for example, is a crucial component to success. It's no wonder then, that according to Report Linker, the market for Building Information Modelling (BIM) is expected to grow significantly in the next four years. BIM helps ensure you hit schedules and don't go over budget. In fact, according to the Dodge Data & Analytics' recent research on modular and prefabricated construction, using BIM will improve budget and schedule performance by 30%.
Collaboration made easier
Modular construction is not only faster and often more affordable, but requires less skilled labor, too. According to the Q4 2019 Commercial Construction Index, 89% of contractors surveyed reported having a moderate or difficult time finding qualified workers.One of the reasons for that, according to Steven Napper, Director of Modern Engineered Software Solutions Ltd, is that more people are leaving the industry than coming in, and in 10 years time we could possibly come to a point when there are not enough resources to build anything.
High-quality manufacturing and less waste
Modular buildings also use almost 67% less energy than traditional buildings. This is partly thanks to BIM software, which makes it easy for designers to make changes and corrections before transporting materials. Small mistakes onsite can send tons of unwanted materials into landfill, and even correct materials are vulnerable to rot and damage in harsh weather. But modular construction has put a stop to this, resulting in a 90% reduction of project material waste.
Product packaging
Detachable Flat pack Container Material list
Product specification
|
Length*width*height
|
Inner 6055mm*2438mm*2896mm/Outer 6055mm*2990mm*2896mm |
Roof form |
Roof tile, color steel plate |
|
Drainage form |
External drainage organization |
|
Number of layers |
≤3 layers |
|
Design Parameters |
Service life |
10 years |
Earthquake resistance |
Level 8 |
|
Wind resistance |
Level 12 |
|
Fire prevention |
Class A, flame retardant |
|
Wall
|
Wall panel |
950 type 50mm rock wool sandwich panel |
Wall panel |
Double-sided color steel plate 0.3mm thick |
|
Keep warm |
Rock wool, bulk density 80KG |
|
Door |
specification |
950*2070 |
Material |
304 stainless steel |
|
Window
|
specification |
925*1200 |
Frame material |
U-PVC window |
|
glass |
Single glass, 5mm |
|
Electricity
|
Voltage |
Not included in the standard box, can be customized according to customer requirements,
additional charges
|
wire |
||
Distribution box |
||
illumination |
||
illumination |
||
Decoration
|
Top and column edging |
Color steel angle aluminum |
Skirting |
Brown PVC |
Product Installation Video
Company Customization Capability
Product production process
Services enjoyed by customers
Higher work efficiency
Professional and efficient team collaboration, efficient collaboration in design, rendering, production, quality inspection and delivery
Quality certification
Before each product leaves the factory, it must undergo strict quality inspection to protect the interests of consumers.
Professional Services
Professional services help us win the reputation and recognition of customers. Provide guarantee for long-term cooperation
Customer Q&A Zone
1.Q: Could you design a new and unique prefab house for me?
A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service.
2.Q: What do I need to provide to build a prefab house?
A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you.
3.Q: How to get the quotation of the project?
A: If you can provide design drawings and required materials, we can quote according to your needs. Besides, If you don't have a drawing, we can also offer you a quotation after telling us the purpose and demand of your prefabricated house.
4.Q: How to control the cost of building a prefab house?
A: After confirming the design plan, you can choose the corresponding building materials according to your own need since each material has its own price.
5.Q: what are the advantages of prefab house?
A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use.
6.Q: What are the uses of this type of house?
A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
7.Q: How long does it take to build a prefab house?
A: It depends on the size of the house and complexity of the house. Usually, a 50 square meters' house takes 5 workers to complete in 1-3 days.
8.Q: What is the delivery time?
A: The delivery time depends on the quantity and the complexity of the house. Usually, the delivery time is 10-20 days after receiving the deposit.
9.Q: How to install?
A: We will provide you with installation instructions and videos, or send a technician to assist you if necessary. However, you are responsible for their wages, visa fees, airfare and accommodation.
10.Q: How do youguarantee the quality of the products?
A: We always put quality first. Every product produced in our factory must pass the strict quality test before it is delivered to the customer.
11.Q: What's your annual supply?
A: Annual Production: About 100000 square meters.
12. Q: What is your MOQ?
A:One set.
13. Q:What is your payment term?
A: 70% deposit by T/T in advance, 30% balance payment before shipment.
14.Q:What trade terms do you accept?
A:EXW, FOB, CIF, etc.
